Portable Track Press / Master Pin Pusher
PDF File Icon Full Line Portable Track Press / Master Pin Pusher Brochure
HEPP 100M Portable Track Press / Master Pin Pusher

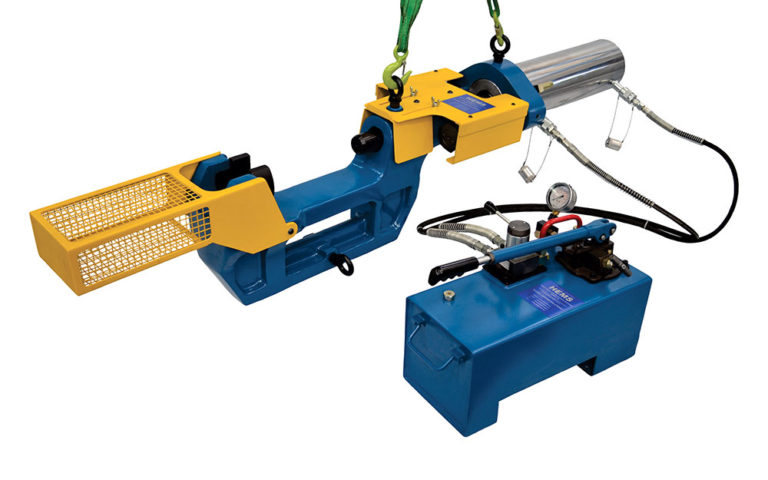

HEPP 100M Portable Track Press
HEPP Master Pin Pusher - No Pump
<
>

The HEMS Model HEPP 100M Portable Track Press / Master Pin Pusher provides a safe, effective, and economical solution for the removal and installation of track pins, master pins, bushings, and master bushings on tracked heavy equipment.

view full description

Description
Specifications
Downloads
Description

The HEMS Model HEPP 100M Portable Track Press / Master Pin Pusher provides a safe, effective, and economical solution for the removal and installation of track pins, master pins, bushings, and master bushings on tracked heavy equipment. The HEPP 100M also makes it possible to disassemble and reassemble chain sections, driving wheels, pulleys, rollers, gears, bearings and shafts. Eliminate the old and dangerous track pin removal methods, while seeing a reduction in labor hours with the HEMS HEPP 100M. With the Manual Pump, the HEPP 100M is ideally suited for repair applications in the field, as well as the workshop.

Specifications
HEMS ModelHEPP 100M
Capacity100 Ton
Cylinder Stroke13.78 in. (350 mm) Double Acting
Frame Throat3.35 in. (85 mm)
Frame Daylight14.53 in. (369 mm)
Total Length of Assembly4.75 ft. (1440 mm)
Weight ("C" Frame with Cylinder)452 lbs. (205 kg)
PumpManual
Min. Pin Diameter.75 in. (19.3 mm)
Max. Pin Diameter2.37 in. (60.2 mm)
Min. Pin Length6.29 in. (160 mm)
Max. Pin Length12.5 in. (320 mm)
Electric Power RequiredNone
Downloads
PDF FILE ICON HEPP 100M Portable Track Press / Master Pin Pusher Details
HEPP 100E Portable Track Press / Master Pin Pusher
HEPP 100E Portable Track Press / Master Pin Pusher
HEPP Master Pin Pusher - No Pump
<
>

The HEMS Model HEPP 100E Portable Track Press / Master Pin Pusher provides a safe, effective, and economical solution for the removal and installation of track pins, master pins, bushings, and master bushings on tracked heavy equipment.

view full description

Description
Specifications
Description

The HEMS Model HEPP 100E Portable Track Press / Master Pin Pusher provides a safe, effective, and economical solution for the removal and installation of track pins, master pins, bushings, and master bushings on tracked heavy equipment. The HEPP 100E also makes it possible to disassemble and reassemble chain sections, driving wheels, pulleys, rollers, gears, bearings and shafts. Eliminate the old and dangerous track pin removal methods, while seeing a reduction in labor hours with the HEMS HEPP 100E. Ideally suited for a workshop equipped with single phase power, the HEPP 100E can also be used in field applications where power is available.

Specifications
HEMS ModelHEPP 100E
Capacity100 Ton
Cylinder Stroke13.78 in. (350 mm) Double Acting
Frame Throat3.35 in. (85 mm)
Frame Daylight14.53 in. (369 mm)
Total Length of Assembly4.75 ft. (1440 mm)
Weight ("C" Frame with Cylinder)452 lbs. (205 kg)
PumpElectric
Min. Pin Diameter.75 in. (19.3 mm)
Max. Pin Diameter2.37 in. (60.2 mm)
Min. Pin Length6.29 in. (160 mm)
Max. Pin Length12.5 in. (320 mm)
Electric Power RequiredSingle Phase 110V/60Hz
